Product Specifications
|
Product Name:
|
Industrial 19-inch Drilling and Milling Machine 32mm
|
Model Number:
|
ZX7016
|
Voltage:
|
220-240V/ 120V (380V is also available)
|
Frequency:
|
50/60HZ
|
Maximum borehole diameter (Steel/Castings):
|
Φ32mm
|
Max. face milling width
|
60mm
|
Max. end milling width
|
16mm
|
Maximum stroke of spindle:
|
110mm
|
Distance spindle axis to column surface:
|
240mm
|
Mas Distance spindle nose to worktable:
|
380mm
|
Spindle Speed Series:
|
5
|
Spindle Speed Range (In 50/ 60HZ):
|
290~2150 RPM
|
Spindle Taper:
|
B16/MT3
|
Table Size:
|
200x540mm
|
Base Size:
|
580x360mm
|
Workbench stroke(X/Y axis)(mm)
|
230/150
|
Overall Height:
|
900mm
|
Net / Gross Weight:
|
135/155KG
|
Packing Size:
|
66x83x93cm
|
Feature

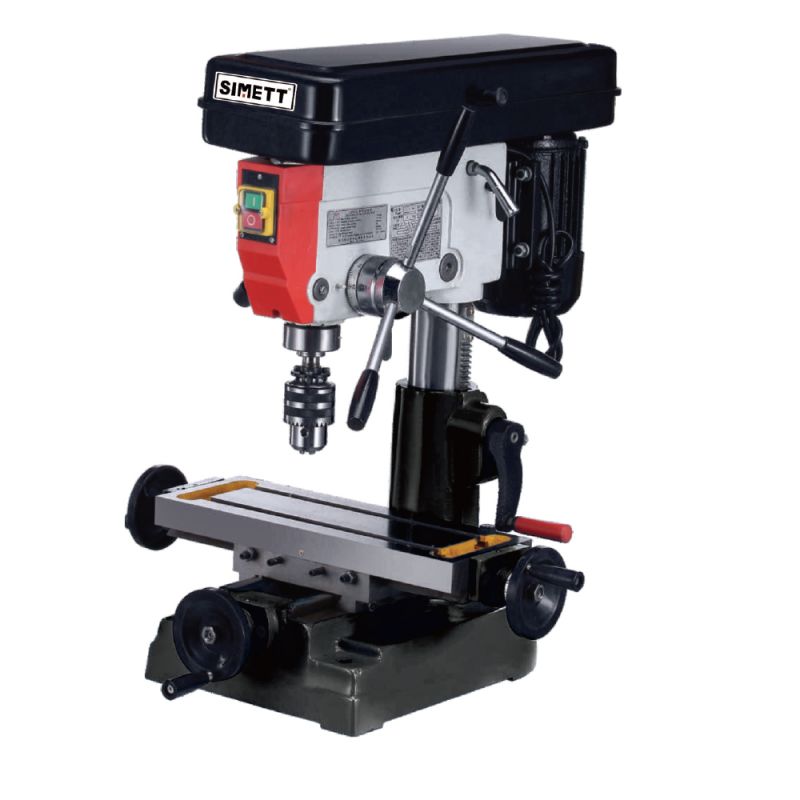

Industrial 19-inch Drilling and Milling Machine 32mm
*Belt drive,low noise;
*Integrated Cross Workbench;
*Sleeve depth positioning locking mechanism:
*The nose can rotate 360 degrees
SIMETTT is excited to supply you with our Industrial 19-inch Drilling and Milling Machine 32mm, backed by the best after-sales service and delivery that's always prompt.
Dual Functionality: This Industrial 19-inch Drilling and Milling Machine 32mm is capable of both drilling and milling operations, providing a versatile solution for a wide range of workshop tasks.
Large Drilling Capacity: With a 32mm drilling capacity, it can handle large hole sizes, suitable for heavy-duty applications and thicker materials.
19-inch Worktable: The Industrial 19-inch Drilling and Milling Machine 32mm's larger worktable size provides ample space for working with bigger workpieces and offers more stability during operation.
Precision Engineering: Engineered for accuracy, the Industrial 19-inch Drilling and Milling Machine 32mm ensures precise hole drilling and milling, critical for maintaining the integrity and quality of the final product.
Variable Speed Control: This feature allows the operator to select the appropriate speed for different materials and tasks, enhancing the machine's adaptability.
Compatibility with Accessories: The Industrial 19-inch Drilling and Milling Machine 32mm is designed to work with a range of drill bits, milling cutters, and other accessories, allowing for customization to suit various project requirements.
Versatility: The Industrial 19-inch Drilling and Milling Machine 32mm's large drilling capacity and milling capabilities make it suitable for a wide range of heavy-duty applications.
Efficiency: The combination of drilling and milling in one machine streamlines operations and reduces the need for multiple tools.
Durability: Built to withstand heavy use, ensuring a reliable tool for the long term.
Construction: Ideal for workshops that produce or repair large components made from heavy materials.
Custom Fabrication: Perfect for small-batch production and custom fabrication jobs that require precision drilling and heavy-duty milling.
In conclusion, the SIMETT Industrial 19-inch Drilling and Milling Machine 32mm is a versatile and powerful tool that offers the convenience of both drilling and milling in a single, robust unit. Its solid construction, precision capabilities, and user-friendly design make it a valuable asset for any workshop that requires reliable and efficient operations for a variety of heavy-duty projects.
