Product Specifications
|
Product Name:
|

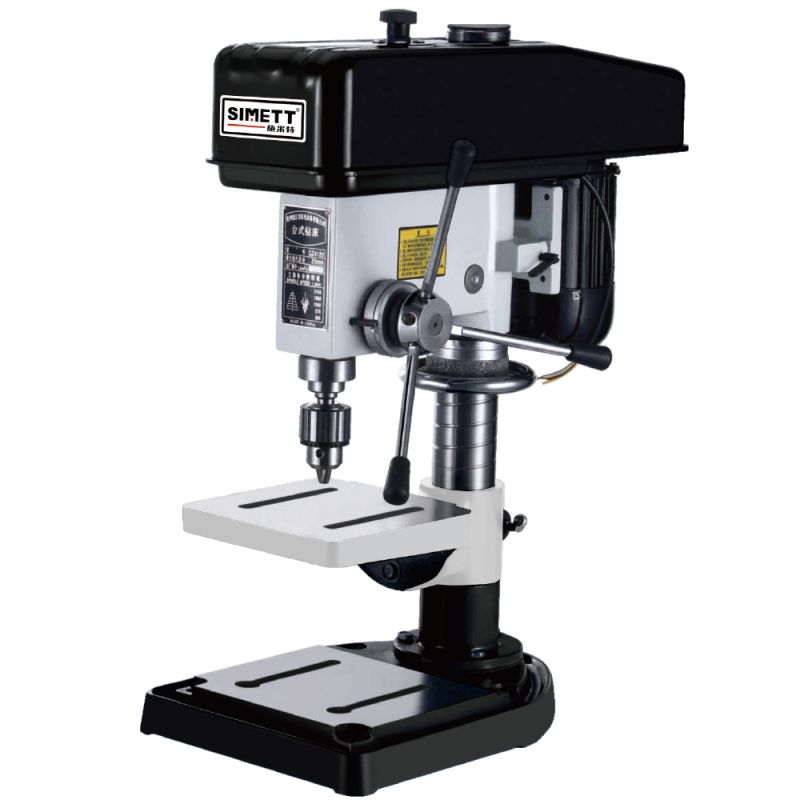

Industrial 16-inch Benchtop Light Drill Press 20mm
|
Model Number:
|
QZ4120
|
Voltage:
|
220-240V/ 120V (380V is also available)
|
Frequency:
|
50/ 60HZ
|
Max. Drilling Diameter:
|
Φ20mm
|
Motor Power:
|
550W
|
Chuck Capacity:
|
20mm
|
Spindle Travel:
|
80mm
|
Spindle Speed Series:
|
4
|
Spindle Speed Range (In 50/ 60HZ):
|
480~4100 RPM
|
Spindle Taper:
|
B16/MT2
|
Max. Distance from Spindle Axis to Surface of Column:
|
200mm
|
Max. Distance from Spindle End to Surface of Table:
|
300mm
|
Max. Distance from Spindle End to Surface of Base:
|
490mm
|
Swing:
|
400mm
|
Table Size:
|
235*225mm
|
Base Size:
|
460x320mm
|
Column Diameter:
|
Φ70mm
|
Machine Height:
|
900mm
|
Net / Gross Weight:
|
50 KG
|
Packing Size:
|
|
Feature
Industrial 16-inch Benchtop Light Drill Press 20mm
*Cast iron handwheel;
*Fine grinding table and bottom plate;
The surface of the box body and the bottom plate of the worktable are finely machined, smooth and beautiful without particles.
*Mainly applicable to repair industry, household, special drilling angle iron,channel steel, stainless steel pipe drilling, opening, bead processing.
Get to know the Industrial 16-inch Benchtop Light Drill Press 20mm through our detailed introduction. SIMETT is dedicated to enhancing your understanding of this equipment. We warmly welcome our valued customers, both new and old, to join us in forging ahead towards a shared prosperous future.
Enhanced Drilling Capacity: With a 20mm drilling capacity, this Industrial 16-inch Benchtop Light Drill Press 20mm can handle larger hole sizes, making it suitable for a wider range of materials and applications.
Compact Benchtop Design: The 16-inch benchtop model is engineered to be compact, saving valuable workshop space while still providing the functionality of a full-sized drill press.
Cast Iron Construction: The use of cast iron in the base and spindle housing provides the Industrial 16-inch Benchtop Light Drill Press 20mm with the necessary weight and stability to operate with precision, despite its lighter classification.
Variable Speed Options: Variable speed settings enable the operator to select the appropriate speed for different materials, ensuring optimal performance and control during the drilling process.
Precision Engineering: The Industrial 16-inch Benchtop Light Drill Press 20mm is designed for high precision, delivering accurate hole placement and depth control, which is essential for professional-grade work.
Durable and Long-Lasting: The combination of cast iron construction and robust engineering ensures the drill press is built to last, providing a reliable tool for the long term.
Cost-Effective Solution: As a benchtop model with a high drilling capacity, Industrial 16-inch Benchtop Light Drill Press 20mm offers a more affordable alternative to larger, floor-standing drill presses without compromising on performance.
Versatile Application: Suitable for woodworking, metalworking, automotive repair, and a variety of DIY and craft projects, this Industrial 16-inch Benchtop Light Drill Press 20mm is a versatile addition to any workshop.
Portability: The lightweight and benchtop design allow for easy movement and positioning within the workshop, making it adaptable to different workspaces.
In summary, the SIMETT Industrial 16-inch Benchtop Light Drill Press 20mm is a feature-rich tool that provides a combination of power, precision, and versatility in a compact and lightweight package. SIMETT's drilling machines are used in a wide range of industries due to their high quality and reliability, and the prosperity of these industries has in turn contributed to the continuous growth of SIMETT's business and technological innovations.
