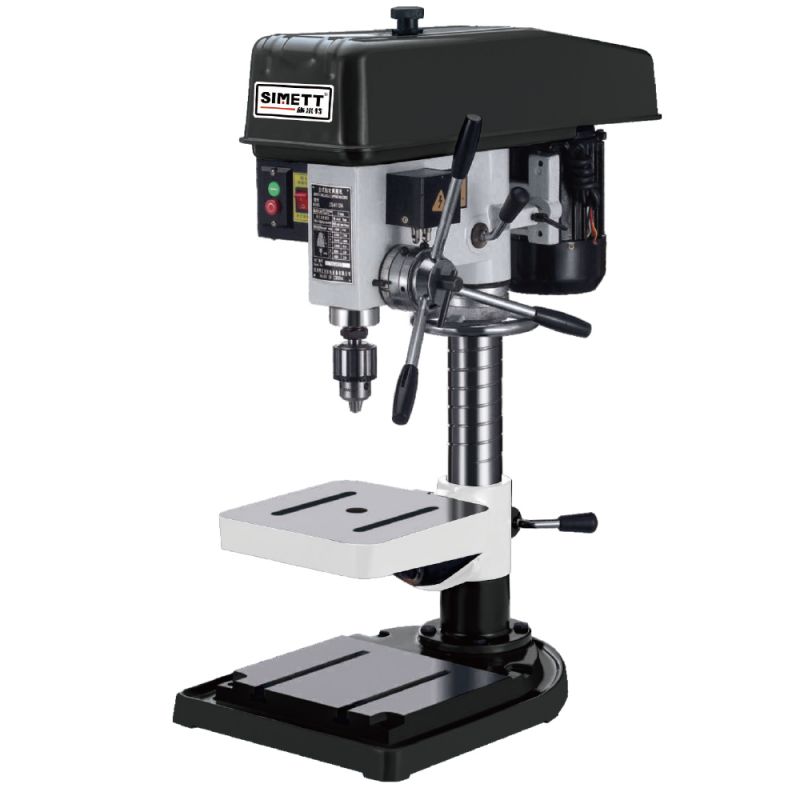

Industrial 15-inch Benchtop Drilling and Tapping Machine 16mm M12

The SIMETT Industrial 15-inch Benchtop Drilling and Tapping Machine 16mm M12, designed for versatility and efficiency, features a convenient conversion between drilling and tapping operations, enhanced by a foot switch and offering two tapping operation modes.

Send Inquiry

Product Description


Product Specifications
Product Name: Industrial 15-inch Benchtop Drilling and Tapping Machine 16mm M12
Model Number: ZS4116A
Voltage: 220-240V/ 120V (380V is also available)
Frequency: 50/ 60HZ
Max. Drilling Diameter: Φ16mm
Maximum borehole diameter (Steel/Castings)(mm) M12
Motor Power: 550W
Chuck Capacity: 16mm
Spindle Travel: 100mm
Spindle Speed Series: 5
Spindle Speed Range (In 50/ 60HZ): 480~4100 RPM
Spindle Taper: B16/MT2
Max. Distance from Spindle Axis to Surface of Column: 193mm
Max. Distance from Spindle End to Surface of Table: 310mm
Max. Distance from Spindle End to Surface of Base: 570mm
Swing: 386mm
Table Size: 260 x250mm
Base Size: 470x 350mm
Column Diameter: Φ70mm
Machine Height: 1037mm
Net / Gross Weight: 70/85KG
Packing Size: 75x40x95cm

Feature

Industrial 15-inch Benchtop Drilling and Tapping Machine 16mm M12


*It can drill holes and tap threads
*Belt drive, smooth operation, low noise;
*Selection of high-quality electrical appliances, stable performance, durable, long service life
*Conversion of drilling and tapping is convenient, with foot switch, two tapping operation modes



SIMETT is a professional Industrial 15-inch Benchtop Drilling and Tapping Machine 16mm M12 provider in China, ready to cater to your wholesale and customization needs. We guarantee you'll receive the best after-sales service and delivery that is prompt and efficient.
Quick Switching: The ability to quickly switch between drilling and tapping operations without much downtime is a significant advantage, especially in production environments where efficiency is key.
Hands-Free Operation: The Industrial 15-inch Benchtop Drilling and Tapping Machine 16mm M12's foot switch allows the operator to control the machine without removing their hands from the workpiece, enhancing safety and convenience.
Increased Precision: With the foot switch, the operator can focus on guiding the drill or tap more accurately, leading to better control over the drilling and tapping process.
Single-Point Tapping: This mode is typically used for precision tapping where only one tap cut is made at a time, suitable for high-tolerance work.
Spindle Tapping: Also known as continuous tapping, this Industrial 15-inch Benchtop Drilling and Tapping Machine 16mm M12's mode allows the tap to run continuously, which is faster and well-suited for lower tolerance applications.
Efficiency: The convenience of switching between operations and the use of a foot switch contribute to a more efficient workflow, reducing the time spent on setup and changeover.
Versatility: The two tapping operation modes provide the flexibility to handle a variety of tapping tasks, catering to different levels of precision and production requirements.
Controlled Operations: The foot switch provides a more controlled operation, which is particularly beneficial when precision and accuracy are paramount.
Space-Saving Design: Despite offering these advanced features, the Industrial 15-inch Benchtop Drilling and Tapping Machine 16mm M12 maintains a compact benchtop design, ensuring it fits easily into most workshops.
In summary, the SIMETT Industrial 15-inch Benchtop Drilling and Tapping Machine 16mm M12's convenient conversion between drilling and tapping, the inclusion of a foot switch, and the two tapping operation modes make it a highly adaptable and efficient tool for a wide range of workshop applications. These features cater to the needs of professionals who require precise control, safety, and versatility from their machinery.
