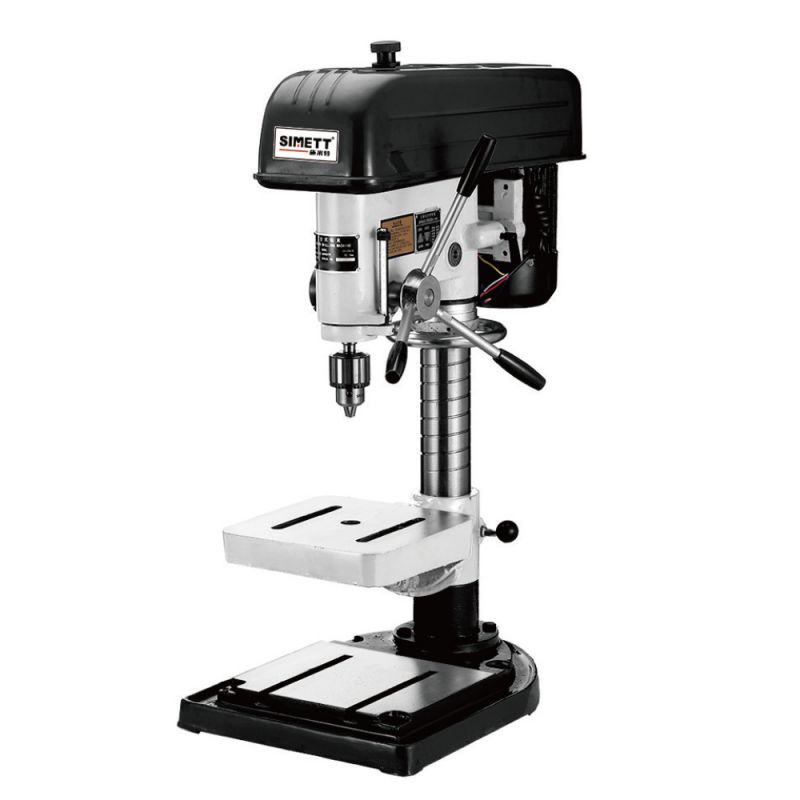

Industrial 15-inch Benchtop Drill Press 12.7mm
Products
Industrial 15-inch Benchtop Drill Press 12.7mm
The SIMETT Industrial 15-inch Benchtop Drill Press 12.7mm is designed to deliver a combination of performance and precision for a variety of drilling tasks. SIMETT is a professional benchtop drill press manufacturers and suppliers in China. If you interested in benchtop Industrial 15-inch Drilling Machine Series 12.7mm products, please contact with us. We follow the quality of rest assured that the price of conscience, dedicated service.
Send Inquiry
Product Description
| Product Specifications | |
| Product Name: | Industrial 15-inch Benchtop Drill Press 12.7mm |
| Model Number: | Z512A-2 |
| Voltage: | 220-240V/ 120V (380V is also available) |
| Frequency: | 50/ 60HZ |
| Max. Drilling Diameter: | Φ12.7(1/2")mm |
| Motor Power: | 550W |
| Chuck Capacity: | 12.7mm |
| Spindle Travel: | 100mm |
| Spindle Speed Series: | 5 |
| Spindle Speed Range (In 50/ 60HZ): | 480-4100RPM |
| Spindle Taper: | B16 |
| Max. Distance from Spindle Axis to Surface of Column: | 193mm |
| Max. Distance from Spindle End to Surface of Table: | 330mm |
| Max. Distance from Spindle End to Surface of Base: | 560mm |
| Swing: | 386mm |
| Table Size: | 260*250mm |
| Base Size: | 470*350mm |
| Column Diameter: | Φ70mm |
| Machine Height: | 970mm |
| Net / Gross Weight: | 65/78KG |
| Packing Size: | 75×40×95cm |
Feature
Industrial 15-inch Drilling Machine Series 12.7mm
*The spindle box body, column and base are made of high quality castings,which are stable, firm and durable after aging treatment.
*lt has high precision and good rigidity, and is widely used in drilling, drilling.drilling and single-piece batch use in various processing industries.
*The belt drive machine has low noise and high precision drill chuck.
SIMETT Industrial 15-inch Drilling Machine Series 12.7mm is a feature-rich tool that offers precision, power, and adaptability. Its compact size, high power motor, variable speed settings, sturdy construction, and safety features make it an excellent choice for a wide range of drilling applications in various settings.
Maximum Drilling Diameter of 12.7mm: This feature enables users to drill through a variety of materials with precision. The 12.7mm capacity is suitable for most standard drilling tasks, making the drill press a valuable addition to any tool collection.
High Power Motor (550W): The 550W motor provides ample power for drilling into a range of materials, including wood, metal, and plastic. This power output ensures efficient and smooth operation, even during more demanding tasks.
Variable Speed Settings: The ability to adjust speed settings allows the Industrial 15-inch Drilling Machine Series 12.7mm to be tailored to the specific requirements of the task at hand. This feature is crucial for achieving optimal drilling performance and precision.
Sturdy Construction: Typically, these Industrial 15-inch Drilling Machine Series 12.7mm are built with a heavy-duty cast iron base, which provides stability and reduces vibrations during operation. This robust construction ensures accuracy and longevity.
One-Handed Belt Tensioning: For ease of use and quick adjustments, one-handed belt tensioning allows operators to change speeds without needing to stop working.
Adjustable Depth Stop: An adjustable depth stop of the Industrial 15-inch Drilling Machine Series 12.7mm feature allows users to set the exact depth for drilling, ensuring consistent hole depths and preventing over-drilling.
Maximum Drilling Diameter of 12.7mm: This feature enables users to drill through a variety of materials with precision. The 12.7mm capacity is suitable for most standard drilling tasks, making the drill press a valuable addition to any tool collection.
High Power Motor (550W): The 550W motor provides ample power for drilling into a range of materials, including wood, metal, and plastic. This power output ensures efficient and smooth operation, even during more demanding tasks.
Variable Speed Settings: The ability to adjust speed settings allows the Industrial 15-inch Drilling Machine Series 12.7mm to be tailored to the specific requirements of the task at hand. This feature is crucial for achieving optimal drilling performance and precision.
Sturdy Construction: Typically, these Industrial 15-inch Drilling Machine Series 12.7mm are built with a heavy-duty cast iron base, which provides stability and reduces vibrations during operation. This robust construction ensures accuracy and longevity.
One-Handed Belt Tensioning: For ease of use and quick adjustments, one-handed belt tensioning allows operators to change speeds without needing to stop working.
Adjustable Depth Stop: An adjustable depth stop of the Industrial 15-inch Drilling Machine Series 12.7mm feature allows users to set the exact depth for drilling, ensuring consistent hole depths and preventing over-drilling.
