Product Specifications

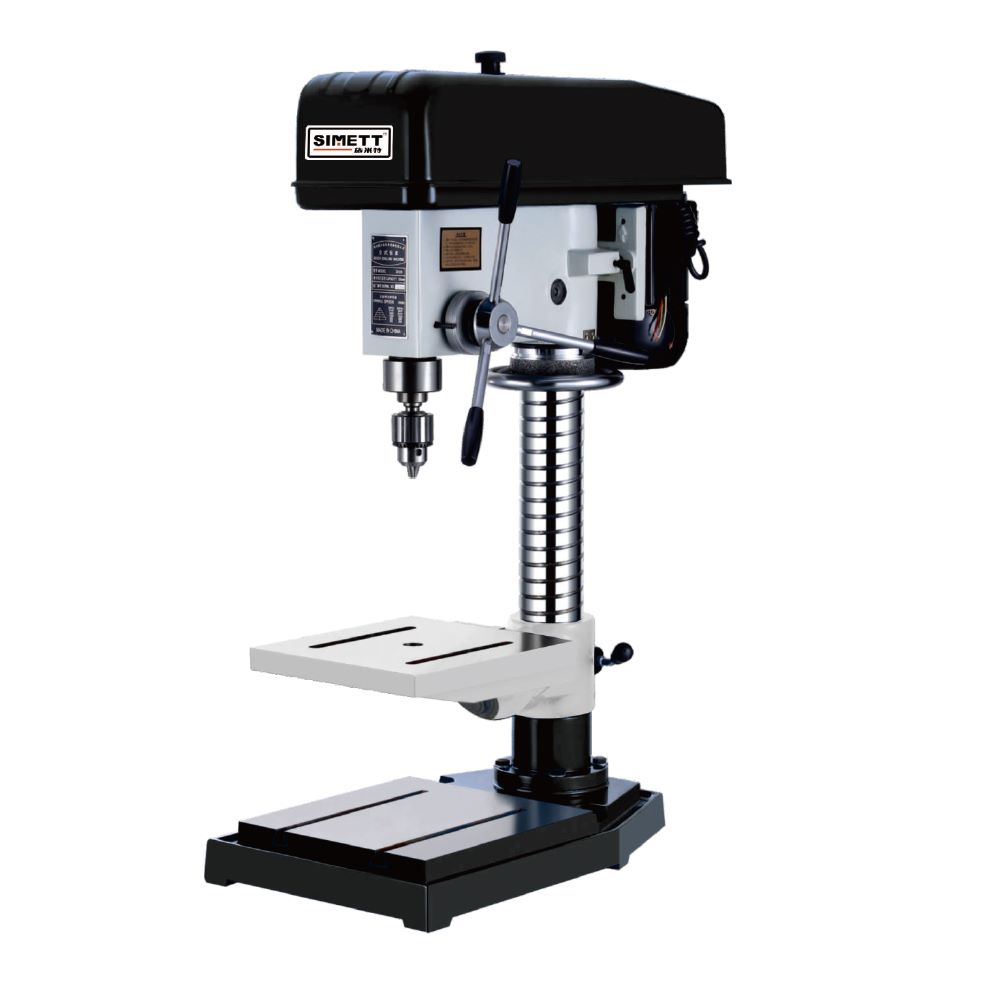

Product Name: | Industrial 19-inch Benchtop Drill Press |
Model Number: | Z4132 |
Max. Drilling Diameter: | 32mm |
Column Diameter: | 85mm |
Max. Spindle Travel: | 110mm |
Distance from Spindle Axis to Column Surface: | 240mm |
Max. Distance Spindle Nose to Worktable: | 420mm |
Max. Distance Spindle Nose to Base: | 690mm |
Spindle Taper: | B16/MT3 |
Spindle Speed Range: | 365-3150RPM |
Spindle Speed Series: | 5 |
Dimension of Worktable Surface: | 320*280mm |
Dimension of Base: | 595*375mm |
Workbench Slot/Base Slot: | 165/170mm |
Overall Height: | 1170mm |
Motor: | 1100W |
GW/NW: | 132/112kg |
Packing Dimensions: | 79*45*107cm |
Feature
The SIMETT 19-inch Benchtop Drill Press for Woodworking Z4132 is a testament to the company's dedication to excellence in industrial machinery. Engineered for professionals who demand the utmost in drilling capabilities, this drill press offers a maximum drilling diameter of 32mm, making it a formidable tool for a variety of heavy-duty applications.
Powerful Drilling Capacity: With the ability to drill up to 32mm, the Z4132 is designed to handle large-scale drilling tasks with ease.
Solid Construction: The 85mm column diameter provides a robust foundation, ensuring stability and precision throughout the drilling process.
Ample Spindle Travel: The 110mm spindle travel allows for deep hole drilling, making the Z4132 suitable for projects that require extended depth.
Optimized Reach: The spindle center's distance of 240mm from the column surface ensures optimal reach and accessibility for drilling.
Versatile Spindle Taper: The B16/MT3 spindle tapers offer a wide range of tool compatibility, enhancing the drill press's utility.
Wide Spindle Speed Range: A spindle speed range of 365-3150 RPM provides the flexibility to drill through various materials with precision and control.
5-Speed Settings: The variable speed settings allow operators to tailor the drilling speed to the specific requirements of the task at hand.
Specifications:
Maximum Drilling Diameter: 32mm, catering to a broad range of heavy-duty drilling tasks.
Column Diameter: 85mm, providing a solid and stable base for the drill press.
Spindle Travel: 110mm, enabling deep drilling capabilities.
Distance from Spindle Center to Column Surface: 240mm, ensuring accurate drilling alignment.
Distance from Spindle End to Worktable: Up to 420mm, accommodating various workpiece heights.
Distance from Spindle End to Base: Up to 690mm, providing ample space for tall workpieces.
Spindle Taper: B16/MT3, offering dual compatibility for tool attachments.
Spindle Speed Range: 365-3150 RPM, for versatility in drilling speeds.
Speed Settings: 5, for precise control over the drilling process.
Worktable Surface Dimension: 320mm x 280mm, providing a generous work area.
Base Dimension: 595mm x 375mm, ensuring a stable and grounded operation.
Worktable and Base Slot Distance: 165mm/170mm, offering flexible clamping options.
Spindle Power: 1100W, delivering reliable power for consistent drilling performance.
Heavy-Duty Woodworking: Ideal for heavy wood materials and large woodworking projects that require precision drilling.
Metal and Plastic Drilling: Capable of drilling through a variety of materials with its high-speed capabilities.
Automotive and Machinery Repair: Perfect for repairs where precision and power are required.
Crafts and Model Making: The precision and control make it suitable for detailed work in crafts and model making.
Safety and Ergonomics:
The Z4132 is equipped with a safety guard and laser guide for accurate hole alignment, enhancing both safety and precision.
The ergonomic design includes easy-to-reach controls and an adjustable worktable for operator comfort.
Larger Drilling Capacity: The Z4132 offers a larger maximum drilling diameter compared to its predecessors, expanding its utility for more demanding tasks.
Increased Spindle Speed Range: The higher speed range allows for faster drilling in appropriate materials, improving efficiency.
165/170mm Slotting System: The larger slotting system on both the worktable and base provides more flexibility for clamping and workholding solutions.
Design and Durability:
The Z4132 features a durable construction with high-quality materials, ensuring a long service life even under heavy use.
The drill press is designed for low-vibration operation, providing a smooth and quiet drilling experience.
Maintenance:
The Z4132 is designed for easy maintenance, with accessible components for routine checks and service.
The SIMETT 19-inch Benchtop Drill Press Z4132 is a powerhouse in the realm of benchtop drilling. With its enhanced drilling capacity, robust construction, and versatile speed settings, the Z4132 is a reliable choice for professionals and serious DIYers alike. This drill press is not just a tool; it's an essential asset to your workshop that promises to deliver exceptional performance and lasting value. Investing in the Z4132 means equipping your workshop with a drill press that sets the standard for precision, power, and user comfort. It's a tool that's ready to tackle any challenge you put in front of it, with the promise of years of dependable service.
