19-inch Benchtop Drill Press 20MM

Product Specifications

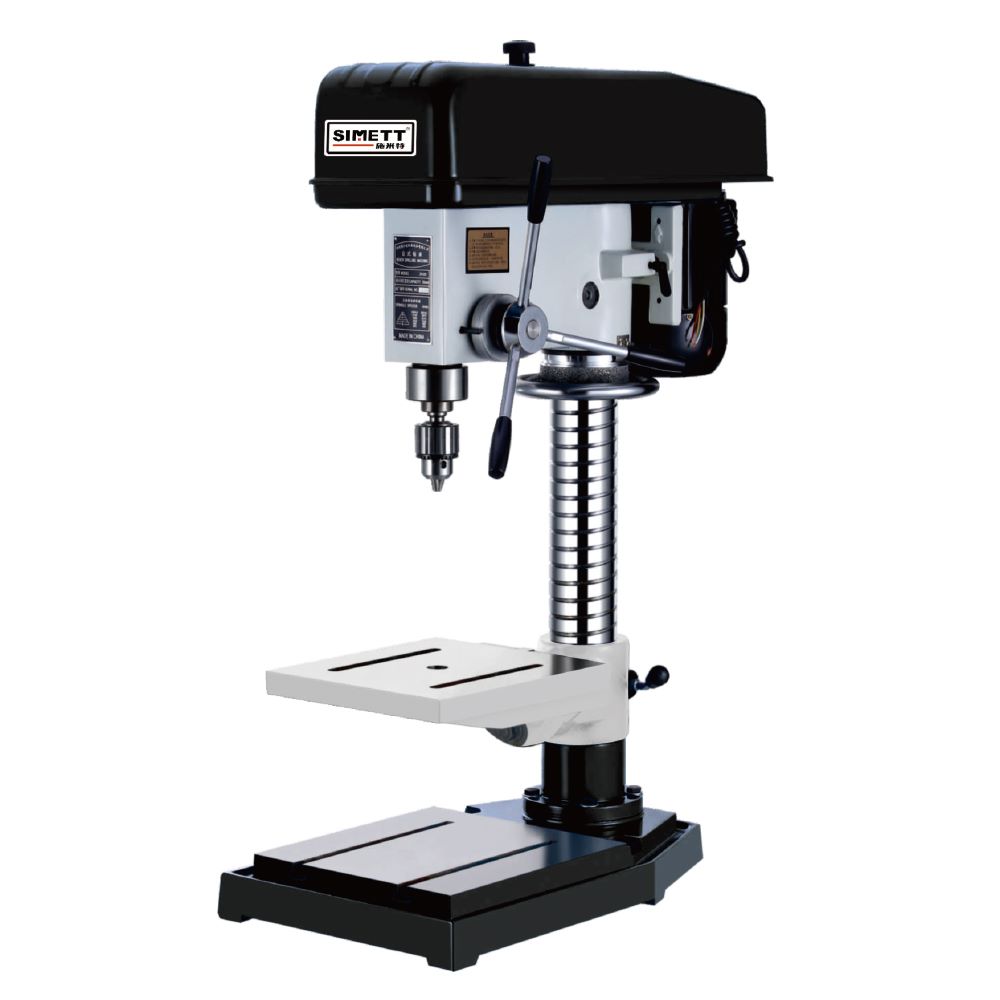

The SIMETT 19-inch Benchtop Drill Press 20MM Z4120 is a masterpiece of industrial design, crafted to meet the rigorous demands of professional workshops. With a maximum drilling diameter of 20mm, this drill press is designed for those who require exceptional accuracy and reliability in their drilling operations. Its robust construction and advanced features make it a cornerstone of any serious workshop.

Versatile Drilling Capacity: The Z4120 offers a maximum drilling diameter of 20mm, suitable for a wide array of applications from woodworking to metalworking.

Sturdy Construction: An 85mm column diameter provides a solid foundation, ensuring stability and precision during operation.

Ample Spindle Travel: The 110mm spindle travel allows for deep hole drilling, making it ideal for large-scale projects.

Optimized Spindle Reach: The spindle center is positioned 240mm from the column surface, providing ample reach for various drilling depths.

Dual Spindle Taper Options: The B16/MT2 spindle tapers offer flexibility in tool selection, catering to different drilling needs.

Wide Spindle Speed Range: A spindle speed range of 365-3150 RPM ensures that the Z4120 can handle materials from softwoods to dense metals.

5-Speed Settings: The variable speed settings provide the operator with the flexibility to match the spindle speed to the specific task at hand.

Maximum Drilling Diameter: 20mm, suitable for a wide range of drilling applications.

Column Diameter: 85mm, ensuring a solid and stable base for the drill press.

Spindle Travel: 110mm, allowing for deep drilling capabilities.

Distance from Spindle Center to Column Surface: 240mm, for accurate drilling alignment.

Distance from Spindle End to Worktable: Up to 420mm, accommodating various workpiece heights.

Distance from Spindle End to Base: Up to 690mm, providing ample space for tall workpieces.

Spindle Taper: B16/MT2, offering dual compatibility for tool attachments.

Spindle Speed Range: 365-3150 RPM, for versatility in drilling speeds.

Speed Settings: 5, for precise control over the drilling process.

Worktable Surface Dimension: 320mm x 280mm, providing a generous work area.

Base Dimension: 595mm x 375mm, ensuring a stable and grounded operation.

Worktable and Base Slot Distance: 165mm/170mm, offering flexible clamping options.

Spindle Power: 1100W, delivering reliable power for consistent drilling performance.

Heavy-Duty Woodworking: The Z4120 is ideal for heavy wood materials and large woodworking projects that require precision drilling.

Metal and Plastic Drilling: Capable of drilling through a variety of materials with its high-speed capabilities.

Automotive and Machinery Repair: Perfect for repairs where precision and power are required.

Crafts and Model Making: The precision and control make it suitable for detailed work in crafts and model making.

The Z4120 is equipped with a safety guard and laser guide for accurate hole alignment, enhancing both safety and precision.

The ergonomic design includes easy-to-reach controls and an adjustable worktable for operator comfort.

Larger Worktable Surface: The Z4120 features a larger worktable surface, providing more space for larger workpieces.

Extended Spindle Reach: The increased distance from the spindle end to the worktable and base allows for taller workpieces and deeper drilling.

165/170mm Slotting System: The larger slotting system on both the worktable and base provides more flexibility for clamping and workholding solutions.

The Z4120 features a durable construction with high-quality materials, ensuring a long service life even under heavy use.

The drill press is designed for low-vibration operation, providing a smooth and quiet drilling experience.

The Z4120 is designed for easy maintenance, with accessible components for routine checks and service.

The SIMETT 19-inch Benchtop Drill Press Z4120 is a powerhouse in the realm of benchtop drilling. With its enhanced drilling capacity, robust construction, and versatile speed settings, the Z4120 is a reliable choice for professionals and serious DIYers alike. This drill press is not just a tool; it's an essential asset to your workshop that promises to deliver exceptional performance and lasting value.

Investing in the Z4120 means equipping your workshop with a drill press that sets the standard for precision, power, and user comfort. It's a tool that's ready to tackle any challenge you put in front of it, with the promise of years of dependable service.
