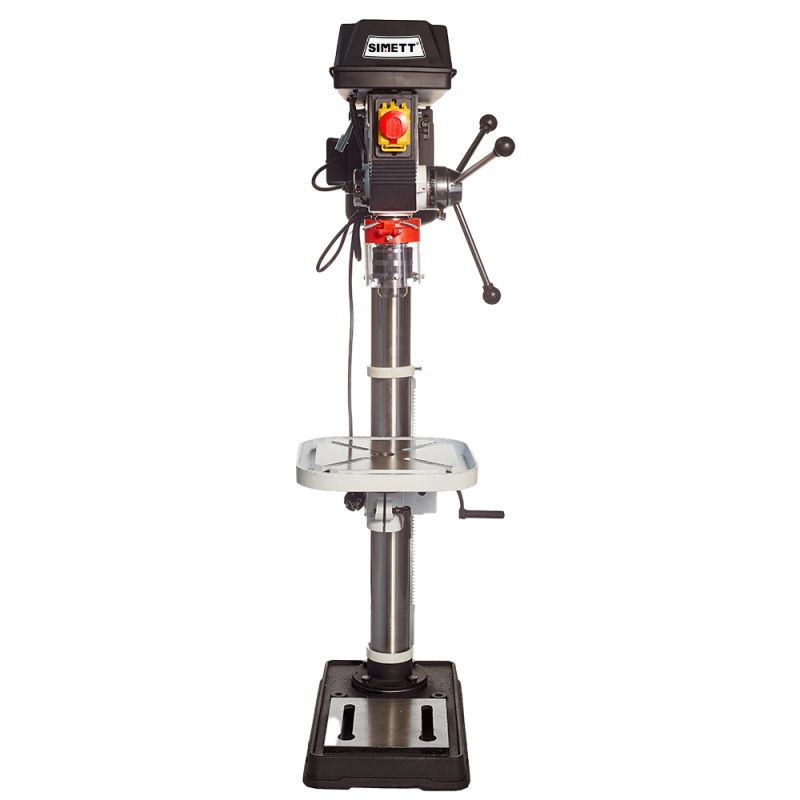

14-inch Bench-top Drill Press 20mm

The SIMETT 14-inch Benchtop Drill Press 20mm is available in three options: 450W, 550W and 750W. It provides users with the flexibility to choose the power level that best suits their specific applications. Whether you're working on intricate woodworking projects or tackling heavy-duty metal drilling tasks, Simett has you covered.

The drill press operates at a voltage of 220-240V/120V, with the additional option of 380V for those requiring an even higher voltage capacity. The adaptability to different voltage levels ensures that the drill press can be seamlessly integrated into various work environments, making it a versatile solution for both home workshops and industrial settings.

One of the standout features of the 14-inch Benchtop Drill Press 20mm is its impressive chuck capacity, ranging from 5mm to 20mm. This broad range allows users to utilize a variety of drill bits, accommodating diverse drilling requirements. Whether you're working with small, intricate bits or larger ones for heavy-duty tasks, this drill press provides the versatility needed for a wide range of applications.

The spindle travel of 85mm further enhances the flexibility of this drill press, allowing for precise drilling depths. The sixteen-speed series, with a spindle speed range of 180-2770/ 220-3320 RPM (in 50/ 60HZ), ensures that users can select the optimal speed for their specific materials and drilling applications. This adaptability makes the 14-inch Benchtop Drill Press 20mm suitable for a diverse array of materials, including wood, metal, and plastics.

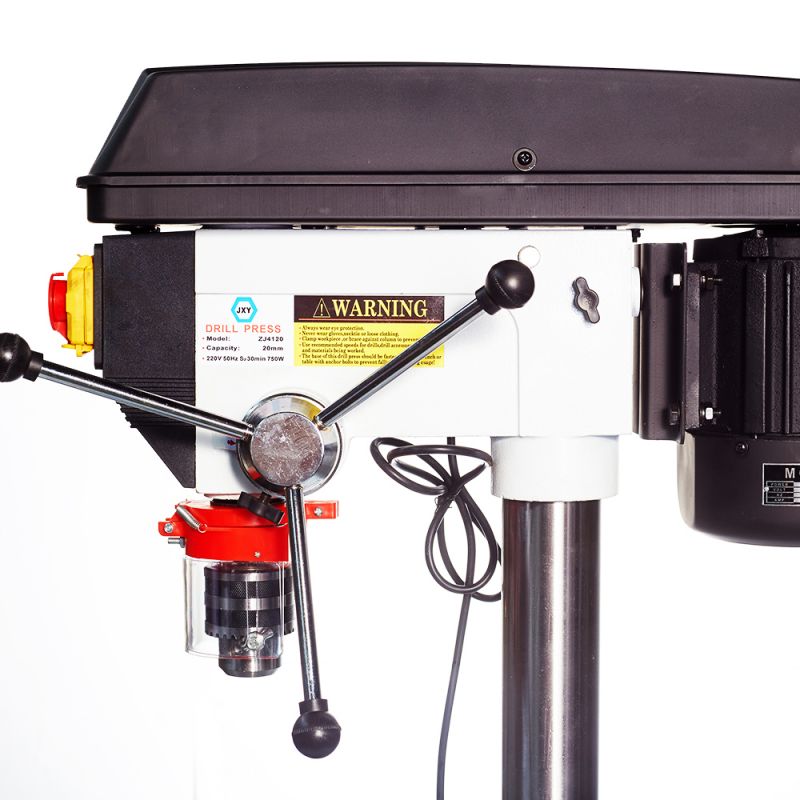

The MT2 spindle taper is a testament to the drill press's commitment to stability and accuracy during operation. This taper design ensures that the drill bit is securely held in place, reducing vibration and enhancing the overall precision of the drilling process. Whether you're executing intricate designs or drilling through tough materials, the MT2 spindle taper is a key feature that sets this drill press apart.

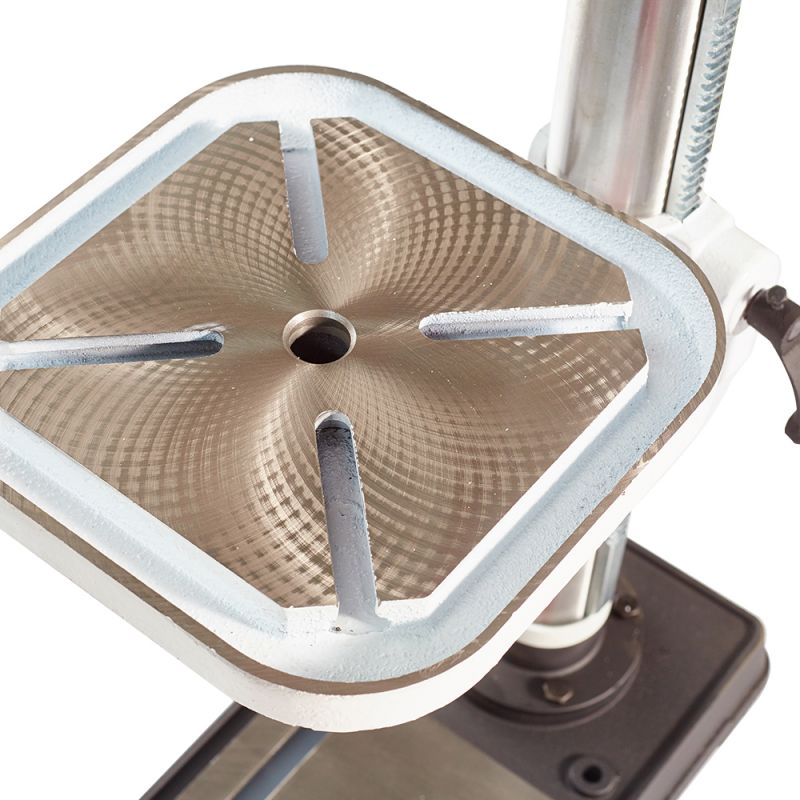

In terms of physical dimensions, the 14-inch Benchtop Drill Press 20mm boasts a swing of 360mm, providing ample space for maneuvering and positioning workpieces. The generously sized table (290*290mm) and base (460*270mm) further contribute to the drill press's usability, allowing users to work with a variety of materials and sizes comfortably.

The Φ72mm column diameter ensures the stability of the drill press during operation, preventing wobbling or deviation from the intended drilling path. This feature is crucial for achieving accurate and clean drill holes, especially when working on precision projects that demand the utmost attention to detail.

Consideration has also been given to the drill press's maximum distances, providing users with the flexibility to adapt to different work scenarios. The maximum distance from the spindle axis to the surface of the column is 180mm, while the maximum distance from the spindle end to the surface of the table and base are 620mm and 810mm, respectively.

Adding to its ergonomic design, the 14-inch Benchtop Drill Press 20mm stands at a machine height of 1200mm. This thoughtful design element ensures that users can work comfortably and efficiently, minimizing strain during extended drilling sessions.

In conclusion, Simett's 14-inch Benchtop Drill Press 20mm is a powerhouse of a tool, combining precision, versatility, and durability. Whether you're a professional craftsman or a DIY enthusiast, this drill press is engineered to meet and exceed your expectations. Invest in Simett, and elevate your drilling experience to new heights.
