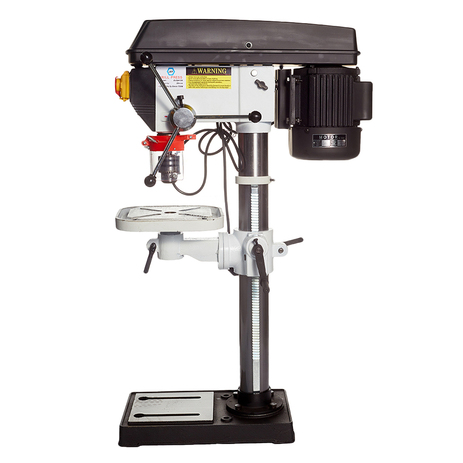

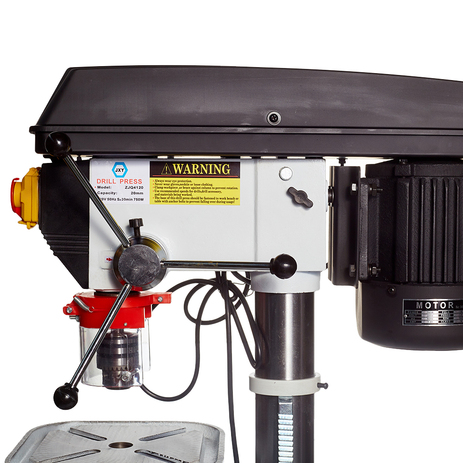

13-inch 20mm Benchtop Drill Press

Here comes the SIMETT 13-inch 20mm Benchtop Drill Press, a precision, easy-operation drill press for all your drilling needs. SIMETT is specialized in drill press for many years. We are striving to provide customers with high quality products and services, and create more value for customers. So let's check the details of our 13-inch 20mm Benchtop Drill Press now.

Model:ZJQ4120

Send Inquiry

Product Description

Product Specifications
Product Name:	13-inch 20mm Benchtop Drill Press
Model Number:	ZJQ4120
Voltage:	220-240V/ 120V (380V is also available)
Frequency:	50/ 60HZ
Max. Drilling Diameter:	Φ20mm (3/4")
Motor Power:	450W/ 550W/ 750W
Chuck Capacity:	5-20mm
Spindle Travel:	80mm
Spindle Speed Series:	16
Spindle Speed Range (In 50/ 60HZ):	180-2770/ 220-3320 RPM
Spindle Taper:	MT2
Max. Distance from Spindle Axis to Surface of Column:	162.5mm
Max. Distance from Spindle End to Surface of Table:	420mm
Max. Distance from Spindle End to Surface of Base:	630mm
Swing:	325mm

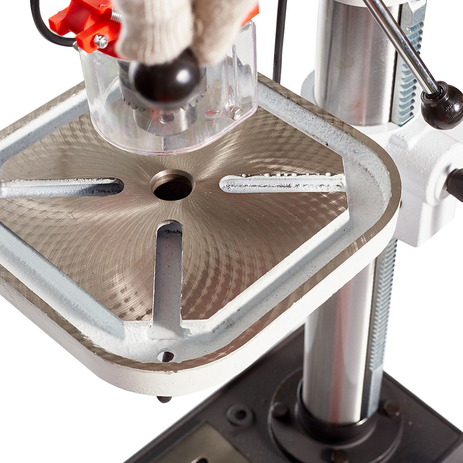

Table Size:	250*250mm

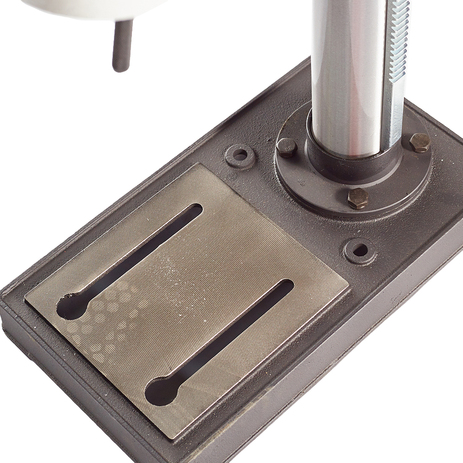

Base Size:	420*250mm
Column Diameter:	Φ72mm
Machine Height:	980mm
Net / Gross Weight:	44/ 47KG
Packing Size:	770450260mm

Feature

13-inch 20mm Benchtop Drill Press

*3/4" (20mm) Max. Chuck Capacity
*13" (325mm) Swing
*16 Spindle Speeds

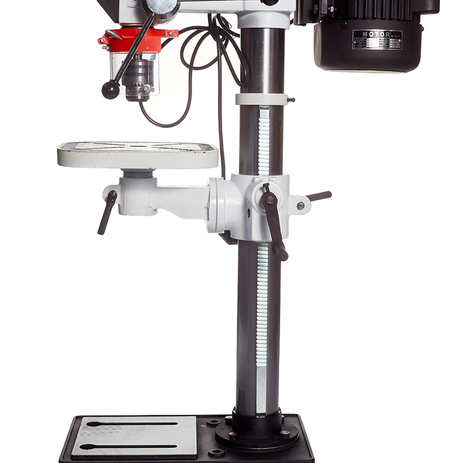

-45°~45° Table Tilt L&R

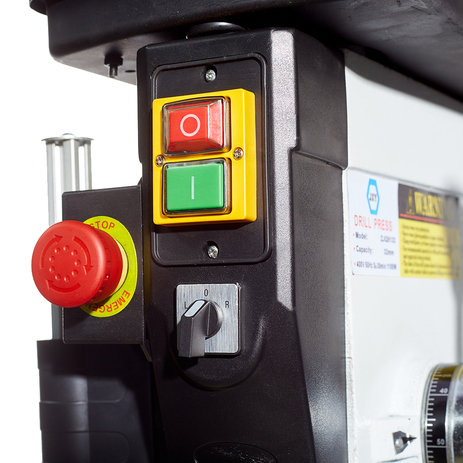

Optional Chuck Guard And Micro-switch For CE Requirement

The SIMETT ZJQ4120 Light Bench Drill Press is a versatile and powerful tool, perfectly suited for a variety of drilling tasks in both professional and DIY environments. Its thoughtful design and robust specifications ensure precision, reliability, and ease of use.Key Features and Specifications

Maximum Drilling Capacity

The drill press boasts a maximum drilling diameter of 20mm, making it ideal for handling a wide range of materials, from wood to metal.

Durable Column Design

Equipped with a column diameter of 72mm, the ZJQ4120 ensures stable and vibration-free operation, which is crucial for achieving accurate drilling results.

Spindle Precision

Maximum Spindle Stroke: 80mm

Spindle Taper: MT2 (Morse Taper 2), a versatile standard that accommodates a variety of drill bits.

Spindle Speeds: The machine offers an impressive 16-speed series, ranging from 180-2770 r/min or 220-3320 r/min, giving users the flexibility to adjust the speed based on material and application.

Compact Yet Powerful

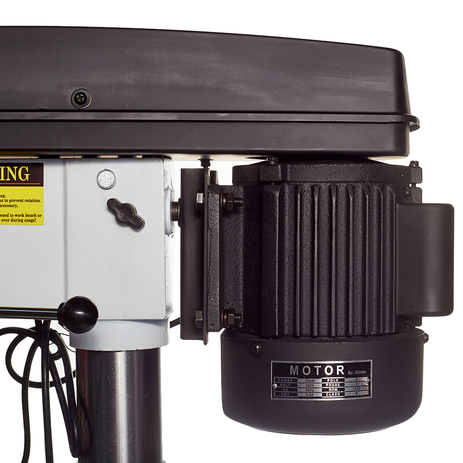

Despite its compact overall height of 980mm, the ZJQ4120 is a powerhouse. With motor options of 375W, 450W, or 550W, it delivers consistent performance for a variety of drilling tasks.

Versatile Capacity

The drill press supports drill bit capacities ranging from 5mm to 20mm, catering to both precision tasks and larger, more demanding applications.
