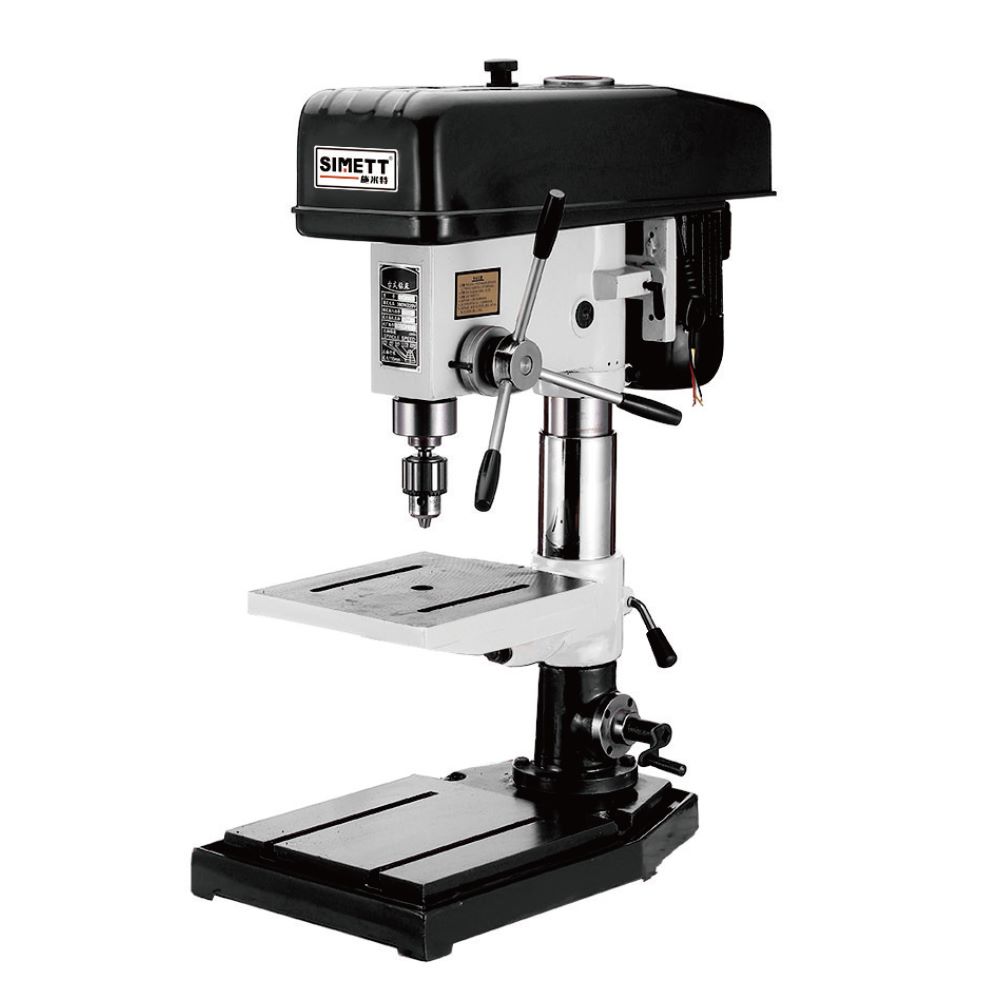

19-inch Benchtop Drill Press

Product Specifications

Feature

The SIMETT 19-inch Benchtop Drill Press Z4120B is a testament to the company's commitment to delivering high-performance drilling solutions. This drill press is designed for professionals who demand the utmost in power, precision, and durability. With a larger work surface and enhanced capabilities, the Z4120B is ready to take on the most challenging drilling tasks.

Expanded Drilling Capacity: The Z4120B boasts a maximum drilling diameter of 20mm, making it suitable for a broader range of applications.

Sturdy Construction: An 85mm column diameter provides a solid foundation, ensuring stability during heavy-duty operations.

Extended Spindle Travel: The 110mm main spindle travel allows for deeper hole drilling, perfect for large-scale projects.

Optimized Distances: The distances from the spindle center to the column surface and from the spindle end to the worktable and base have been carefully calibrated for enhanced accessibility and reach.

Versatile Spindle Taper: With B16/MT2 spindle tapers, the Z4120B offers compatibility with a wide array of drilling bits and attachments.

Variable Speed Range: A spindle speed range of 365-3150 RPM ensures that the drill press can handle various materials and drilling requirements.

5-Speed Settings: The variable speed settings provide the operator with the flexibility to match the spindle speed to the specific task at hand.

Maximum Drilling Diameter: 20mm, expanding the drill press's application range for more demanding tasks.

Column Diameter: 85mm, ensuring a solid and stable base for the drill press.

Spindle Travel: 110mm, allowing for deep drilling capabilities.

Distance from Spindle Center to Column Surface: 240mm, for accurate drilling alignment.

Distance from Spindle End to Worktable: Up to 330mm, accommodating various workpiece heights.

Distance from Spindle End to Base: Up to 610mm, providing ample space for tall workpieces.

Spindle Taper: B16/MT2, offering dual compatibility for tool attachments.

Spindle Speed Range: 365-3150 RPM, for versatility in drilling speeds.

Speed Settings: 5, for precise control over the drilling process.

Worktable Surface Dimension: 320mm x 280mm, providing a generous work area.

Base Dimension: 580mm x 370mm, ensuring a stable and grounded operation.

Worktable and Base Slot Distance: 165mm, offering flexible clamping options.

Spindle Power: 1100W, delivering reliable power for consistent drilling performance.

Heavy-Duty Woodworking: The Z4120B is ideal for heavy wood materials and large woodworking projects that require precision drilling.

Metal and Plastic Drilling: Capable of drilling through a variety of materials with its high-speed capabilities.

Automotive and Machinery Repair: Perfect for repairs where precision and power are required.

Crafts and Model Making: The precision and control make it suitable for detailed work in crafts and model making.

The Z4120B is equipped with a safety guard and laser guide for accurate hole alignment, enhancing both safety and precision.

The ergonomic design includes easy-to-reach controls and an adjustable worktable for operator comfort.

Larger Drilling Capacity: The Z4120B offers a larger maximum drilling diameter compared to its predecessors, expanding its utility for more demanding tasks.

Increased Spindle Speed Range: The higher speed range allows for faster drilling in appropriate materials, improving efficiency.

165mm Slotting System: The larger slotting system on both the worktable and base provides more flexibility for clamping and workholding solutions.

The Z4120B features a durable construction with high-quality materials, ensuring a long service life even under heavy use.

The drill press is designed for low-vibration operation, providing a smooth and quiet drilling experience.

The Z4120B is designed for easy maintenance, with accessible components for routine checks and service.

The SIMETT 19-inch Benchtop Drill Press Z4120B is a powerhouse in the realm of benchtop drilling. With its enhanced drilling capacity, robust construction, and versatile speed settings, the Z4120B is a reliable choice for professionals and serious DIYers alike. This drill press is not just a tool; it's an essential asset to your workshop that promises to deliver exceptional performance and lasting value.

Investing in the Z4120B means equipping your workshop with a drill press that sets the standard for precision, power, and user comfort. It's a tool that's ready to tackle any challenge you put in front of it, with the promise of years of dependable service.
